Electrical articulated boom

VG 700 - 8,90 mt


VG 700 - 8,90 mt
Cod: VG 700

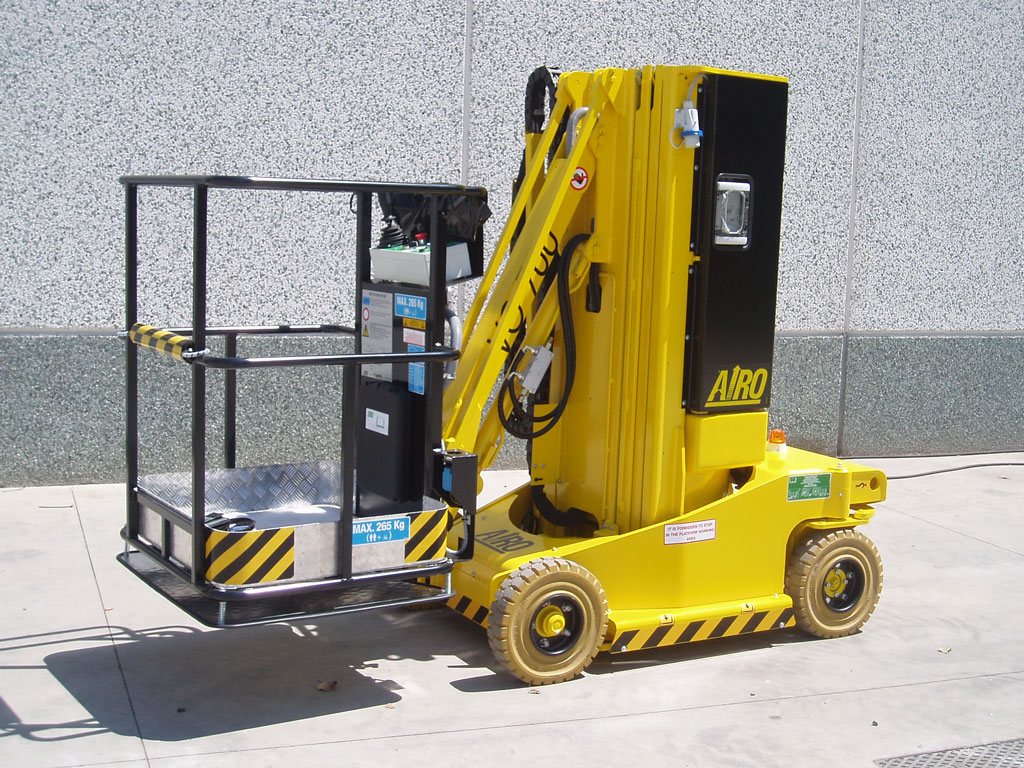

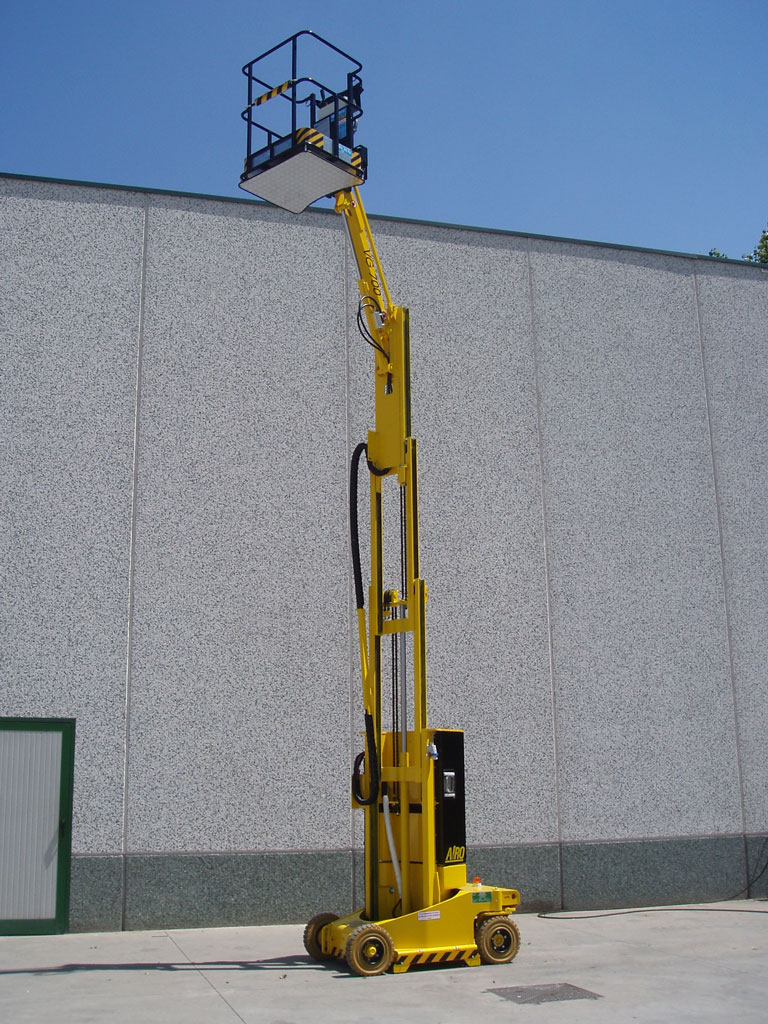

Special rotating articulated platform, suitable for a specific use especially in warehouses and supermarkets with small operating space, it can pass through suspended obstacles.  Max. working height: 8.90 m Total capacity: 265 kg
Do you have any questions? Ask ASALIFT

Nome *:
Email *:
Città *:
Oggetto *:
Richiesta *:
I campi contrassegnati con * sono obbligatori
I consent to the processing of my data as indicated in the Privacy Policy

Technical details

Max. platform height 6,90 mt
Max. working height 8,90 mt
Total capacity 265 kg
Width 990 mm
Max. outreach 3,24 mt
Length 2535 mm
Total weight 2680 kg
Overall dimensions, stowed machine 1995 mm
Drive wheels 2
Type Elettrica
