Diesel Scissor lifts

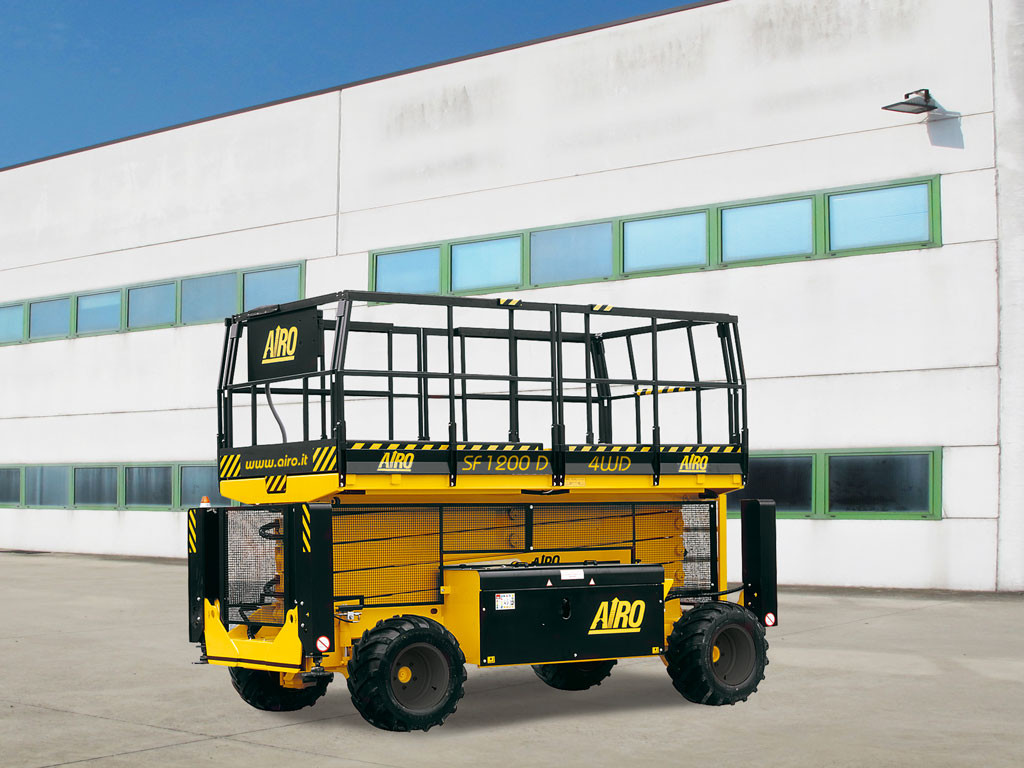

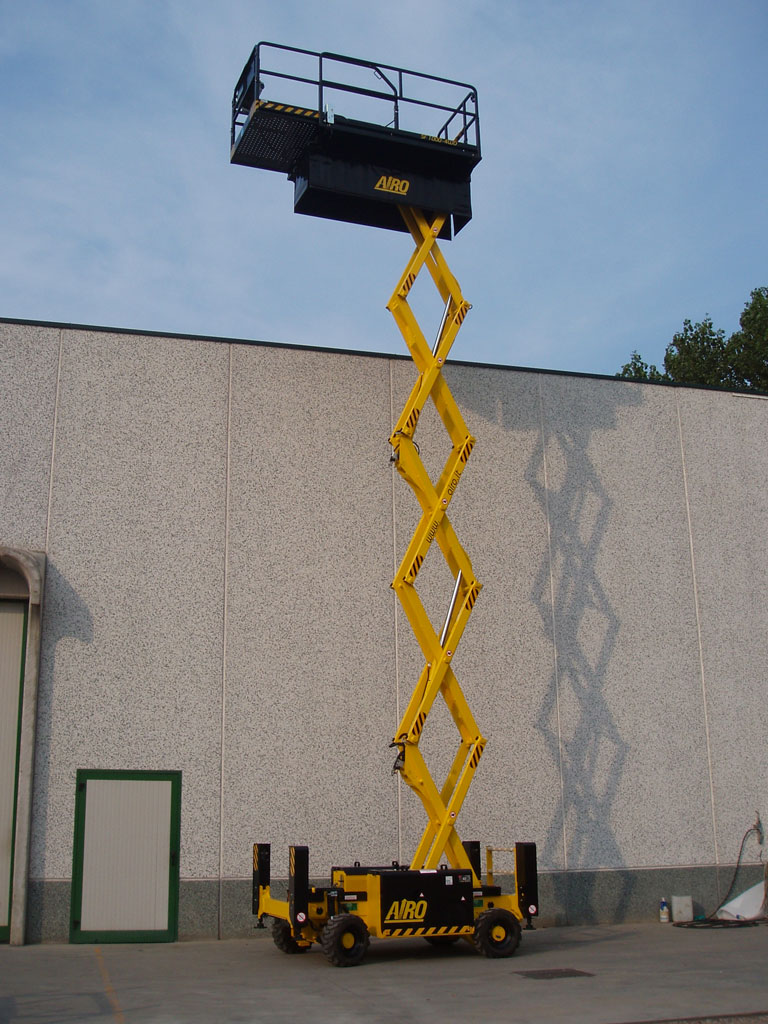

SF 1200 4WD - 14 mt


SF 1200 4WD - 14 mt

Cod: SF 1200 4WD
4 - wheel drive vertical platform, diesel-powered, with high capacity and a lot of working space on the cage, particularly suitable for heavy ship-building works. Standard outriggers help levelling the machine even on highly irregular grounds. Max. working height: 14.00 m Total capacity: 700 kg
Do you have any questions? Ask ASALIFT

Nome *:
Email *:
Città *:
Oggetto *:
Richiesta *:
I campi contrassegnati con * sono obbligatori
I consent to the processing of my data as indicated in the Privacy Policy

Technical details

Max. platform height 12,00 mt
Max. working height 14,00 mt
Total capacity 700 kg
Width 2110 mm
Max. outreach 1,17 mt
Larghezza con stab. aperti 2110 mm
Length 4020 mm
Total weight 5870 kg
Overall dimensions, stowed machine 2870 mm
Overall dimensions, stowed machine (rails down) 2040 mm
Overall dimensions, stowed machine (without rails) 1770 mm
Drive wheels 4
Type Diesel
