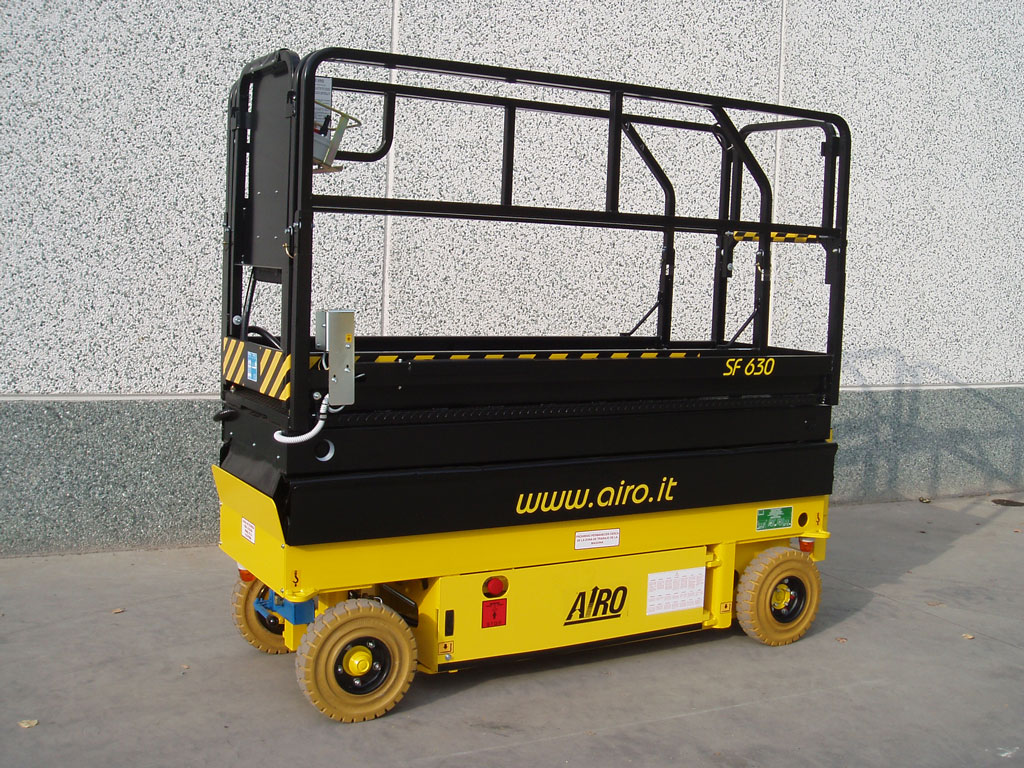

Electrical Scissor LiftsSF 630 . 8,30 mt |
|
SF 630 . 8,30 mt |
Code: SF 630
Traditional type of electric vertical platform. Max. working height: 8.30 m Total capacity: 400 kg |
|
Do you have any questions? Ask ASALIFT
Richiesta di inviata!
Ti risponderemo nel minor tempo possibile.
Technical details
| Max. platform height | 6,30 mt |
| Max. working height | 8,30 mt |
| Total capacity | 400 kg |
| Width | 850 mm |
| Max. outreach | 1 mt |
| Length | 2510 mm |
| Total weight | 1440 kg |
| Overall dimensions, stowed machine | 2150 mm |
| Overall dimensions, stowed machine (rails down) | 1755 mm |
| Overall dimensions, stowed machine (without rails) | 1000 mm |
| Drive wheels | 2 |
| Type | Elettrica |
Images
Brochure
|
SF 630 E - 630 S E.pdf |
