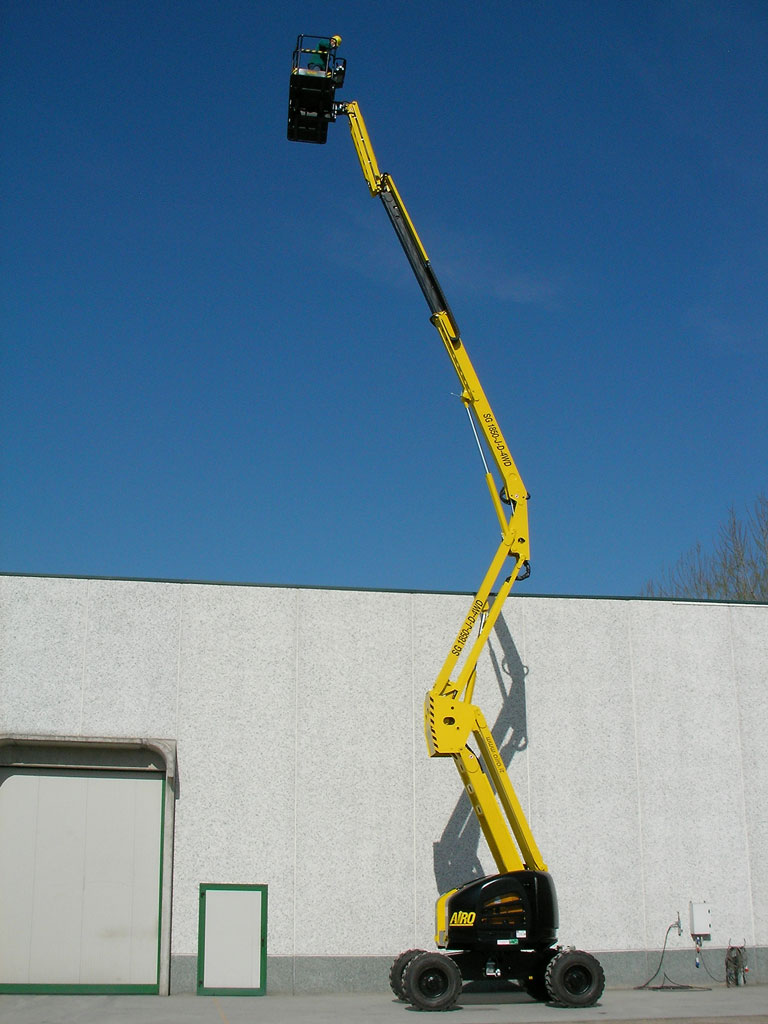

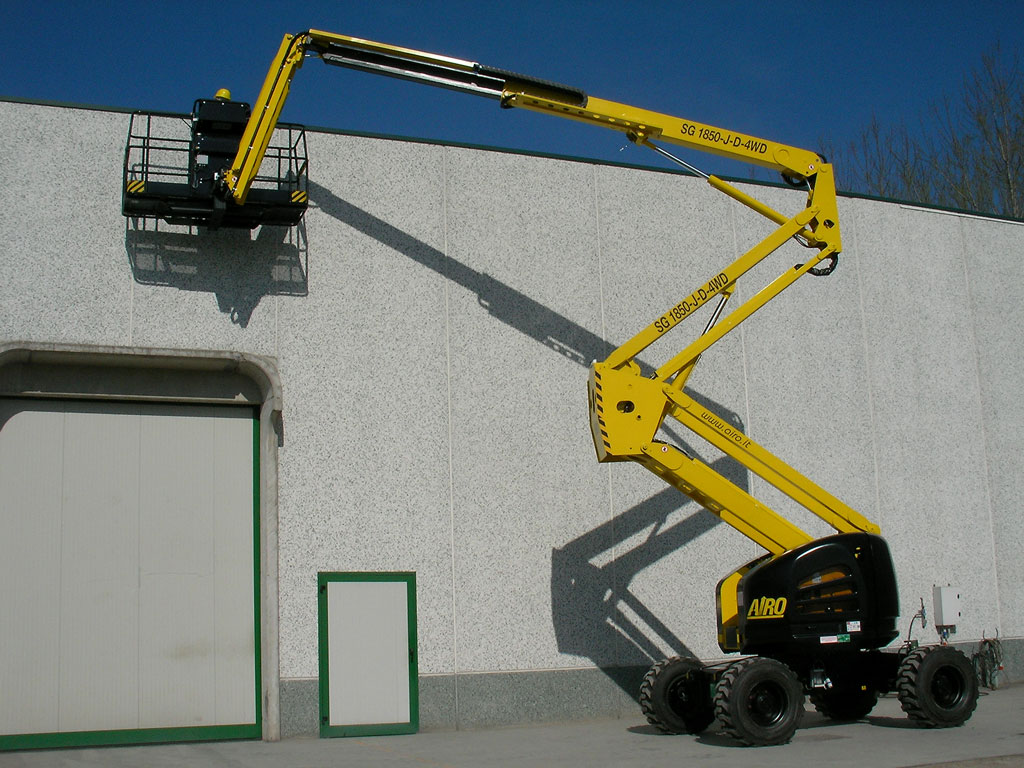

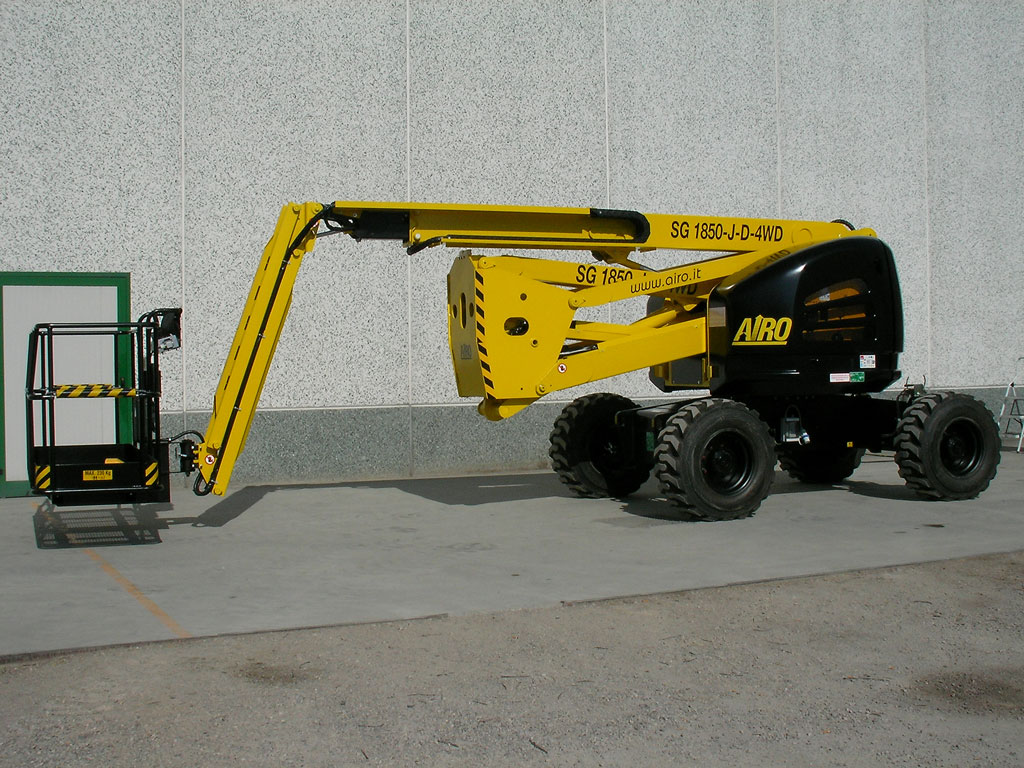

Diesel articulated boom

SG1850 4WD - 20,50 mt


SG1850 4WD - 20,50 mt
Cod: SG 1850 4WD
4-wheel drive, 4 wheel steering platform, diesel-powered, suitable for overhanging works and every type of terrain. Max. working height: 20.50 m Total capacity: 230 kg
Do you have any questions? Ask ASALIFT

Nome *:
Email *:
Città *:
Oggetto *:
Richiesta *:
I campi contrassegnati con * sono obbligatori
I consent to the processing of my data as indicated in the Privacy Policy

Technical details

Max. platform height 18,50 mt
Max. working height 20,50 mt
Total capacity 230 kg
Width 2400 mm
Max. outreach 11,25 mt
Length 7965/6610 mm
Total weight 12250 kg
Overall dimensions, stowed machine 2650/3160 mm
Drive wheels 4
Type Diesel
