Diesel Scissor liftsSF 1000 4WD - 12 mt |
|
SF 1000 4WD - 12 mt |
Cod: SF10004WD

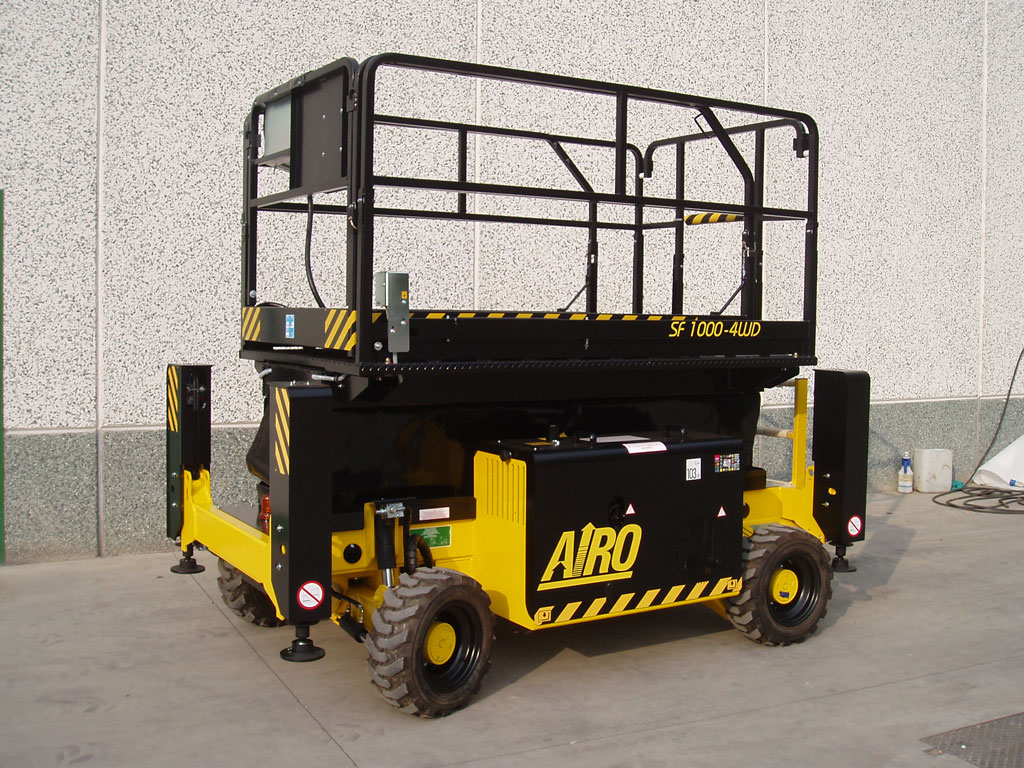

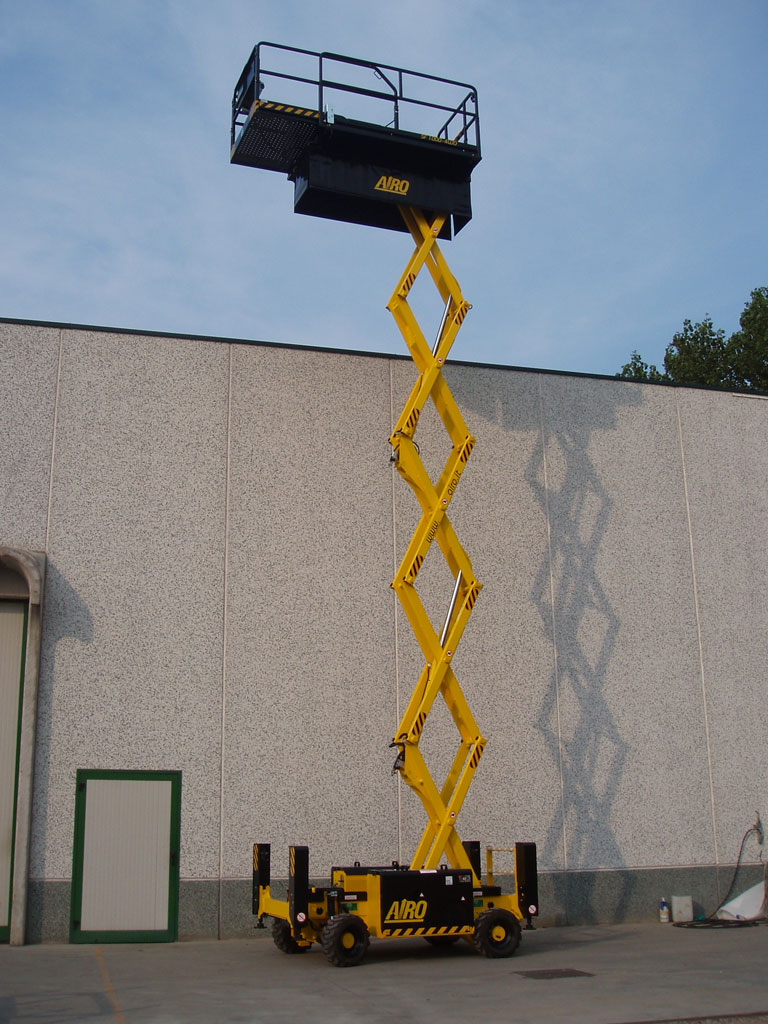

4-wheel drive platform, diesel-powered, suitable for uneven terrain. With outriggers. Max. working height: 12 m Total capacity: 450 kg |
|
Do you have any questions? Ask ASALIFT
Richiesta di inviata!
Ti risponderemo nel minor tempo possibile.
Technical details
| Max. platform height | 10 mt |
| Max. working height | 12 mt |
| Total capacity | 450 kg |
| Width | 1700 mm |
| Max. outreach | 0,85 mt |
| Larghezza con stab. aperti | 1700 mm |
| Length | 2970 mm |
| Total weight | 3200 kg |
| Overall dimensions, stowed machine | 2490 mm |
| Overall dimensions, stowed machine (rails down) | 2000 mm |
| Overall dimensions, stowed machine (without rails) | 1340 mm |
| Drive wheels | 4 |
| Type | Diesel |
Images
Brochure
|
SF 1000-d4wd.pdf |
