Electrical Scissor Lifts

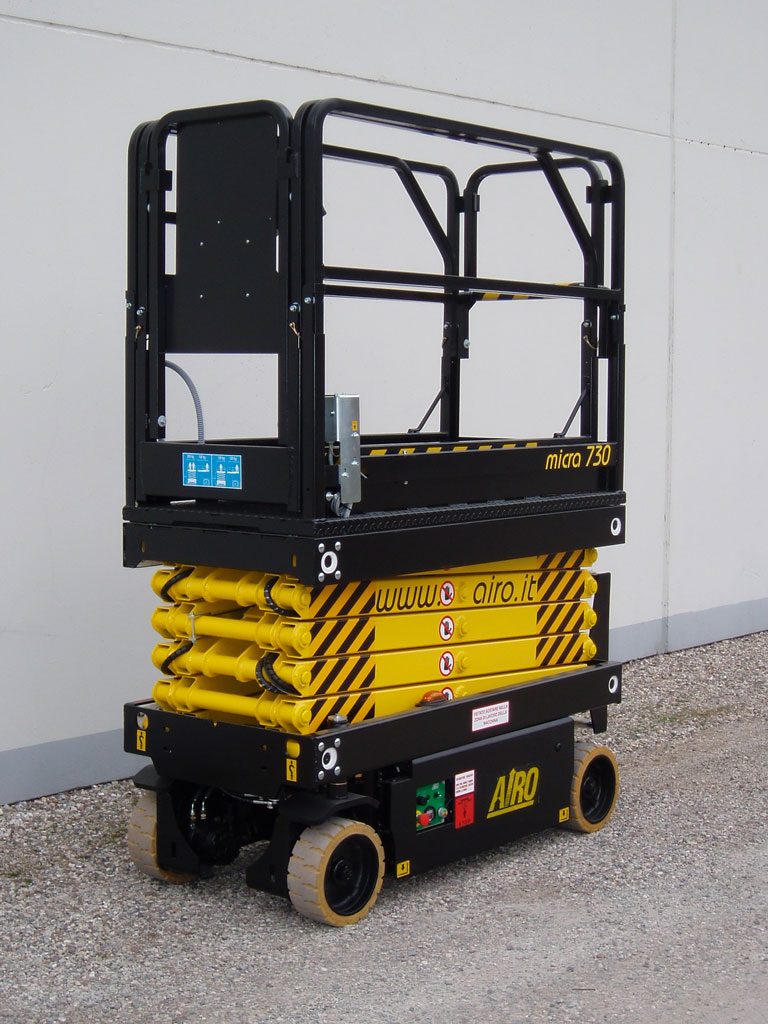

MICRA 730 - 9,30 mt


MICRA 730 - 9,30 mt

Code: MICRA 730
Compact platform, suitable for operating in small spaces such as warehouses, supermarkets, etc. Max. working height: 9.30 m Total capacity: 200 kg
Do you have any questions? Ask ASALIFT

Nome *:
Email *:
Città *:
Oggetto *:
Richiesta *:
I campi contrassegnati con * sono obbligatori
I consent to the processing of my data as indicated in the Privacy Policy

Technical details

Max. platform height 7,30 mt
Max. working height 9,30 mt
Total capacity 200 kg
Width 765 mm
Max. outreach 1 mt
Length 1805 mm
Total weight 1540 kg
Overall dimensions, stowed machine 2305 mm
Overall dimensions, stowed machine (rails down) 1910 mm
Overall dimensions, stowed machine (without rails) 1155 mm
Drive wheels 2
Type Elettrica
